Orion+ Series Laser Cutting Machine
Orion+ Series Laser Cutting Machine

Orion+ Series Laser Cutting Machine

Introduction
Orion series laser cutting equipment adopts a compact integrated single-base structure and can be used to cut all types of boxes. This kind of cutting machine is equipped with worktables of the sizes 3000 mm × 1500 mm and 4000 mm × 2000 mm. Laser power can be chosen between 2500 W and 4000 W. Wycinarki laserowe are widely used in machining metal and non-metal materials in the fields of artwork, electronics, toys, sheet metal, jewelry, nameplates, advertising, precision machinery, automobile parts as well as glasses. The laser cutting equipment has the advantage of decreased processing time and cost, and improved quality. The products include stainless steel plate, iron plate, aluminum plate, ceramic plate, silicon sheet as well as diamonds.

Characteristics
1. Compact integrated single-base structure provides Orion series laser cutting equipment with solid body, easy installation, as well as good seismic resistance.
2. This range of laser cutting machine features in a fully programmable servo control over a 290 mm height control axis, which facilitates cutting all types of boxes.
3. Our laser cutting equipments are integrated with advanced Fanuc excited fast axial flow CO2 laser, Fanuc CNC system and servo drive package.
4. These Wycinarki laserowe are equipped with a simple and stable external optical system.
5. With satisfying ventilation and dust removal performance, our products are environmental friendly.
6. Low maintenance and operation cost makes a contribution to reducing production costs.
7. As a professional sheet metal forming machine supplier in China, our laser cutting equipments are characterized by high productivity, flexibility, accuracy as well as easy operation.

Compared to Orion, Orion Plus Laser Cutting Machine adds the following improvements:
1. NC-Focus auto focus adjustment, process control
2. color display(color touching screen interface), expandable memory
3. Loading/unloading device is available

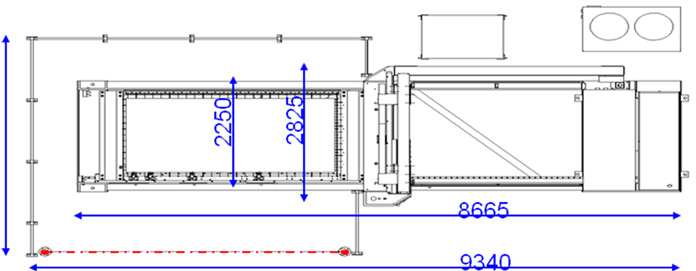

Plane graph

Laser source type of Orion series Laser Cutting Machine:
FANUC –HF excited fast axial flow CO2 laser

Technical Specifications of Orion Series Laser Cutting Equipment

type Orion 3015 Orion plus 3015 Orion 4020 Orion plus  4020
CNC FANUC-16iLB
LCD 9.5"Black and white 10.4"Black and white 9.5"Black and white 10.4"Black and white
Laser Power 2500W,4000W
Type GE-Fanuc HF excited axial flow CO2 laser
Output power range 2500W:50-2500W,4000W:50-4000W
Output stability +/-1%
Pulse Frequency 5HZ-2000HZ
Focus Adjustment manul automatic(with V axis) Manual Automatic(with V axis)
Max. sheet size (mm) 3000 mm × 1500 mm 4000 mm × 2000 mm
Max.Z-Axis Travel 290mm 240mm 290mm 240mm
X,Y-axis Speed 100m/min
Positioning Accuracy +/-0.05
Repetitive Accuracy +/-0.025
Material processing capacity Mild steel 16mm 20mm
Stainless Steel 10mm 15mm
Aluminum 6mm 10mm
Machine Dimensions 7950×2825×2200 8665×2825×2200 10800×3500×2200 10800×3500×2200
Machine weight 10500kg 11000kg 15500kg 16000kg
