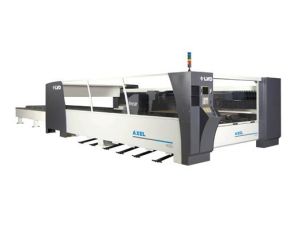

Axel Series Laser Cutting Machine
Axel Series Laser Cutting Machine

Axel Series Laser Cutting Machine

Introduzione
Axel series CNC laser cutting machine is an integrated LVD cutting machine mainly composed of Fanuc CNC system, laser sources and motor drive. It is provided with two sizes of worktables, 1500 mm × 3000 mm ones and 2000 mm × 4000 mm ones. Also, this kind of efficient laser cutter has two kinds of laser sources for choices, 4 kW ones and 5 kW ones. In addition, this series of laser cutter can reach the maximum cutting speed of 40 m/min.

Characteristics
1. Our CNC laser cutting machine is equipped with automatic shuttle tables or a fully integrated and programmable load/unload system.
2. These laser cutters feature in a laser eye optical sensor positioning system, which allows positioning reference point in an automatic and non-contact way.
3. Capacitive height sensor keeps a constant distance between laser head and material plate and the undulations in the plate are timely adjustable with the adjustment of the laser head height.
4. NC optimization can realize automatic cutting head motion according to travel distance without operators’ intervention, so as to improve productivity to the highest level.
5. This series of CNC laser cutting machine also has the feature of NC focus control, which ensures quick changeover and optimized cutting results. Additionally, our laser cutters support fast cut-to-cut workpiece changeover.
6. Constant beam length system contributes to consistent cutting over the entire area.
7. Our products are provided with quick change lens (5 inch, 7.5 inch and 10 inch) as standard.
8. Modular structure allows for multiple loading stations, three stations at the most.
9. This range of CNC laser cutting machine supports high-speed and continuous cutting on high-quality workpiece,
10. These laser cutters offer high stability with low operation and maintenance cost.

Key options
1. Plasma detection system
2. Load system
3. Choice of 2.5 kW, 4 kW and 5 kW laser sources
4. Cadman-L offline software

Models Avaible
1. Axel 3015 S, Axel Linear 3015 S
2. Axel 3015 L, Axel Linear 3015 L
3. Axel 3015 L2 / L2.2, Axel Linear 3015 L2 / L2.2
4. Axel 3015 L3, Axel Linear 3015 L3

Laser Type of Axel Series Laser Cutters :
Fanue HF excited fast axial flow CO2 laser

Parameter Table of Axel Series CNC Laser Cutting Machine

NO. Item 2.5kW 4.0kW
1 Laser Power 2500W +/-1% 4000W +/-2%
2 Mode D(special cutting method)
3 Beam Divergence Degree ﹤2 mard
4 Directional Stability ﹤0.2 mard
5 Pulse Frequency 5 Hz to 2000 Hz  Pulse Frequency
6 Wave Length 10.6 um
7 Laser Gas Consumption only 10L/h
